TekENUM System Requirements
- A Windows system with at least 4 GB of RAM.
- Microsoft.NET Framework 4.8 (Min.)
- 10 MBytes of disk space for installation.
Installing and Uninstalling
Please see Installation Manual which can be found in the application directory for configuration details and operation;
- Run TekENUM Manager from Start Menu / Program Files / TekENUM.
- You can define resource records or routes for a particular E.164 number or a prefix in "Routing" tab. Enter a phone number prefix to bottom leftmost
textbox and click "Add Route" button.
You can have also a default route entry. TekENUM chooses longest match prefix route. If any match can not be found default route is chosen if exists. You can have just one resource record per prefix or per E.164 entry. Enter a prefix and click "Add Route" button to add a new routing entry. You must edit at least URI entry to commit changes.
- You can create DNS policies to control DNS queries proxied through TekENUM. You need to create black- or whitelist-based profiles. Every profile must have destination domain names and matching source IP addresses or subnets. TekENUM can also check resolved IP addresses for an A (Address) type DNS query so you can specify both IP addresses and domain names in the Destinations section.
You can add 0.0.0.0 as IP address to the IP Addresses / Subnets section to match all source IP addresses.

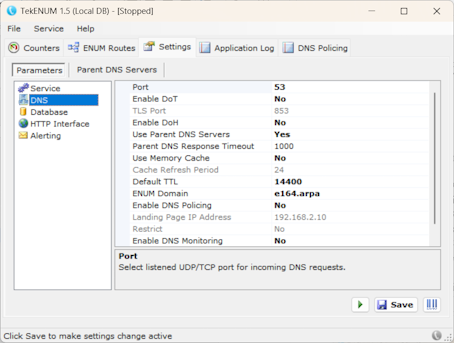

TekENUM will return landing page IP address to blocked DNS A type queries. TekENUM will respond to all DNS queries received in redirected DNS quires to TekENUM server either via mirroring or policy-based routing when you enable DNS Monitoring options in Settings.
